Documents Dependencies

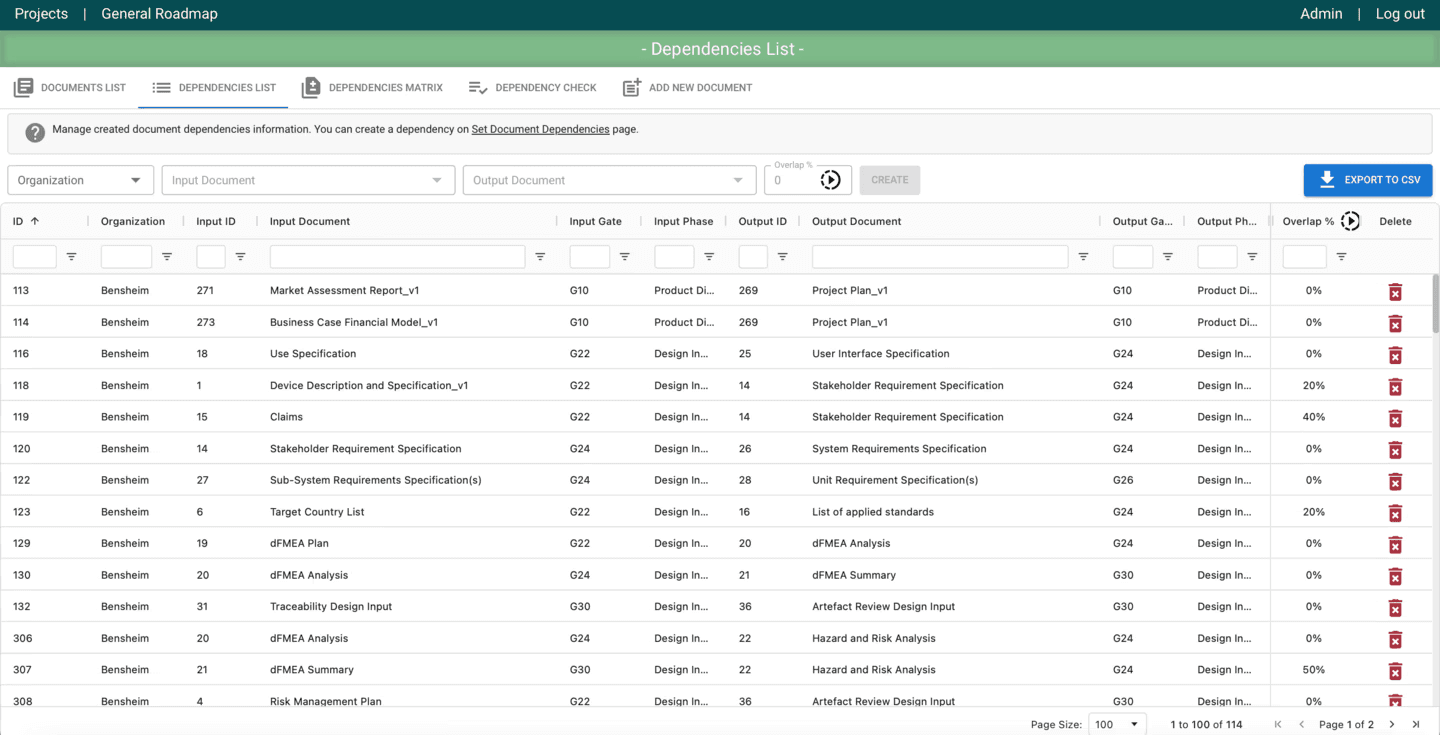

Dependencies List

Displays dependencies between documents and artifacts within the project.

• Input Document: A document that serves as an input for the next phase.

• Output Document: A document that results from a previous document.

• Input Gate and Output Gate: Phases in which documents transition (e.g., G22, G24).

• Input Phase and Output Phase: Defines whether a document belongs to "Design Input" or another project phase.

• Overlap %: Displays the percentage of overlap between documents.

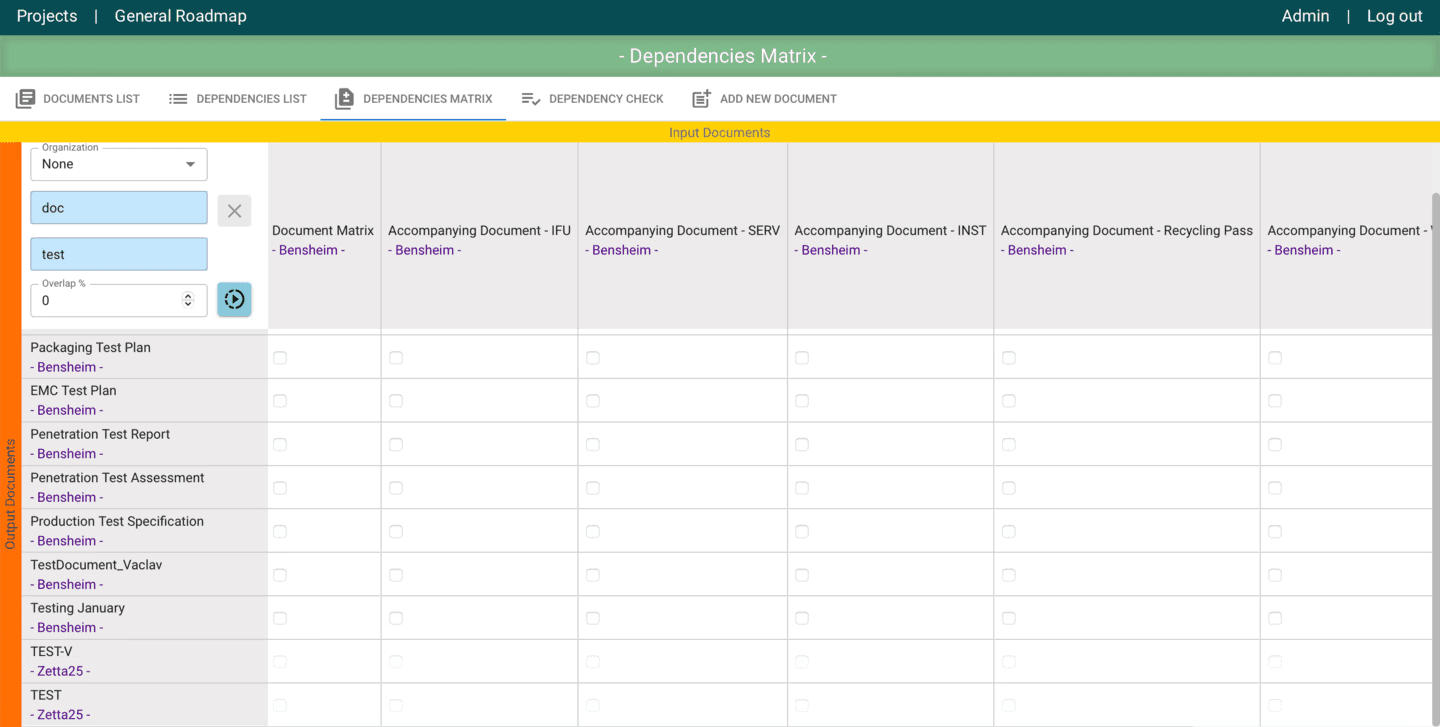

Dependencies Matrix

Provides a matrix view of relationships between input and output documents. It also allows setting or deleting overlap values between documents.
